Smart Contract Interfaces — ABIs & IDLs

​

Using ABIs and IDLs to control transaction signing:

With the introduction of Turnkey’s Smart Contract Interface functionality, our policy engine includes enhanced support for uploading Ethereum ABIs and Solana IDLs, empowering your organization to build more sophisticated and context-aware policies. By parsing transaction call data through these standardized interfaces, the policy engine can accurately interpret and enforce rules based on the specific function calls, arguments, and data structures used in smart contract interactions. This enables granular control over wallet operations, such as restricting access to certain contract methods and validating transaction parameters—across both Ethereum and Solana ecosystems.

The following guide will walk you through uploading a specific ABI or IDL, and then crafting a policy that targets specific contract call arguments.

For an example usage flow, please navigate to the Usage Walkthrough section.

​

Ethereum

​

ABI Format

Ethereum ABIs are represented in JSON format as an array of objects, each describing a function, constructor, event, or error. Each object contains specific fields that fully describe the callable interface or event signature. See ABI documentation reference for more.

Example ABI

[
  {
    "type": "function",
    "name": "transfer",
    "inputs": [
      {
        "name": "_to",
        "type": "address"
      },
      {
        "name": "_amount",
        "type": "uint256"
      }
    ],
    "outputs": [],
    "stateMutability": "nonpayable"
  },
  {
    "type": "event",
    "name": "Transfer",
    "inputs": [
      {
        "name": "from",
        "type": "address",
        "indexed": true
      },
      {
        "name": "to",
        "type": "address",
        "indexed": true
      },
      {
        "name": "value",
        "type": "uint256",
        "indexed": false
      }
    ],
    "anonymous": false
  }
]

​

Policy Formats

For Ethereum, if an ABI corresponding to a contract has been uploaded, then ABI related policies for transactions calling that contract will be available under the following namespaces:

• function_name: This field contains the string representation of the name of the function as defined in the ABI
• function_signature: This field contains the bytes making up the function signature
• contract_call_args: This field contains all the arguments in a mapping of arg name to argument

NOTE: The contract_call_args field, at the first level, uses a MapKey access pattern. All arguments are named and are accessed using the syntax as such:

{
    "condition": "eth.tx.contract_call_args['arg_name'] == 1"
}

​

Solana

For Turnkey’s Solana IDL support, we accept IDLs formatted according to Anchor’s IDL language standardization. While other standards do exist, most commonly used IDLs that aren’t Solana’s own native IDLs, adhere to the Anchor IDL format, and there exist tools like native-to-anchor which can help create anchor formatted IDLs for native solana programs.

​

Turnkey Formatting requirements

NOTE: this is just included for reference and troubleshooting, most Anchor IDLs should work straight out of the box. Also, some older formats of IDLs are supported (such as using the optional boolean signer instead of isSigner, or the optional boolean writable instead of isMut) – the format detailed below is the most widely used format, for reference.

Instructions Array

The instructions array is a list of objects, each defining an instruction callable by the program.

• instructions (array of objects)
  • name (string): Name of the instruction.
  • discriminator (optional): Unique identifier for the instruction (optional).
  • accounts (array of objects): List of accounts required by the instruction.
    • isMut (boolean): Whether the account is mutable.
    • isSigner (boolean): Whether the account is a signer.
    • isOptional (boolean): Whether the account is optional.
    • name (string): Name of the account.
  • args (array of objects): Arguments required by the instruction.
    • name (string): Name of the argument.
    • type (IdlType enum): Data type of the argument.

Types Array

The types array defines custom data structures used by the program.

• types (array of objects)
  • name (string): Name of the custom type.
  • type (object)
    • kind (string enum): The kind of type (e.g., “struct”).
    • fields (array of objects): Fields within the type.
      • name (string): Name of the field.
      • type (IdlType enum): Data type of the field.

NOTE: discriminators are optional because anchor has a default method of generating the discriminators deterministically from the instruction names. If your uploaded IDL does not include instruction discriminators, we will internally generate them as per this standard. See Anchor Discriminator Reference for more.

Example IDL

{
  "instructions": [
    {
      "name": "initialize",
      "accounts": [
        {
          "name": "authority",
          "isMut": false,
          "isSigner": true,
          "isOptional": false
        }
      ],
      "args": [
        {
          "name": "amount",
          "type": "u64"
        }
      ]
    }
  ],
  "types": [
    {
      "name": "MyStruct",
      "type": {
        "kind": "struct",
        "fields": [
          {
            "name": "value",
            "type": "u64"
          }
        ]
      }
    }
  ]
}

Supported Arg Types

Solana IDLs support various different types of arguments to instructions. The following argument types are supported for Solana IDL parsing and call data parsing.

IdlType

• Fixed arrays: Array<IdlType>
• Booleans: Bool
• Byte strings: Bytes
• Float types: F32, F64
• Signed Integer Types: I8, I16, I32, I64, I128
• Unsigned Integer Types: U8, U16, U32, U64, U128
• Solana Addresses: PublicKey
• Vectors: Vec<IdlType>
• Strings: String
• Optional Types: Option<IdlType>
• Custom Defined Types: DefinedType

The most notable here are Defined Types. Defined types in IDLs refer to custom types—such as structs and enums—that are created by the Solana program developer and used as argument types in instructions or as fields in accounts. The following defined types are currently supported:

• Enum
• Struct
• Alias

Where to get IDLs from

Solana IDL JSON objects, as formatted for use with Turnkey, can be obtained by the following methods:

• Explorer Links
  • Solscan:
    • Example Solscan Link to Program IDL (Jupiter)
    • Example Solana.Explorer Link to Program IDL (Jupiter)
• Anchor CLI:
  • Using the command: anchor idl <program_account_string>

​

Policy Formats

On the Solana side, if an IDL corresponding to a program has been uploaded, then IDL related policies for instructions calling that program will be available in each instruction under the parsed_instruction_data namespace. The subfields will be as follows:

• instruction_name: Name of the instruction that is being called in call data
• discriminator: the bytes at the beginning of the instruction call data that signifies which instruction is being called
• named_accounts: a mapping of account names (as defined in the IDL) to the actual accounts that were entered to this instruction
• program_call_args: all program arguments required by this instruction call

Note: The program_call_args field, at the first level, uses a MapKey access pattern. All arguments are named and are accessed using the syntax as such:

{
    "condition": "solana.tx.instructions[0].parsed_instruction_data.program_call_args['arg_name'] == 1"
}

Example Usage

Let’s say that the IDL for Jupiter has been uploaded, as found here

Here’s an example policy related to its route instruction:

{
   "effect": "EFFECT_ALLOW",
   "condition": "solana.tx.instructions.any(i, i.program_key == 'JUP6LkbZbjS1jKKwapdHNy74zcZ3tLUZoi5QNyVTaV4' && i.parsed_instruction_data.instruction_name == 'route' && i.parsed_instruction_data.program_call_args['in_amount'] == 995500000)"
}

​

Usage Walkthrough

Let’s walk through an example flow of how to explicitly reference smart contract arguments in policies by uploading the ABI for the smart contract which you will be invoking in your transactions. Let’s take the Wrapped ETH (WETH) smart contract as an example. Its ABI can be found here, and we’ve included the JSON down below:

[{"constant":true,"inputs":[],"name":"name","outputs":[{"name":"","type":"string"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":false,"inputs":[{"name":"guy","type":"address"},{"name":"wad","type":"uint256"}],"name":"approve","outputs":[{"name":"","type":"bool"}],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[],"name":"totalSupply","outputs":[{"name":"","type":"uint256"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":false,"inputs":[{"name":"src","type":"address"},{"name":"dst","type":"address"},{"name":"wad","type":"uint256"}],"name":"transferFrom","outputs":[{"name":"","type":"bool"}],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"wad","type":"uint256"}],"name":"withdraw","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[],"name":"decimals","outputs":[{"name":"","type":"uint8"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":true,"inputs":[{"name":"","type":"address"}],"name":"balanceOf","outputs":[{"name":"","type":"uint256"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":true,"inputs":[],"name":"symbol","outputs":[{"name":"","type":"string"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":false,"inputs":[{"name":"dst","type":"address"},{"name":"wad","type":"uint256"}],"name":"transfer","outputs":[{"name":"","type":"bool"}],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[],"name":"deposit","outputs":[],"payable":true,"stateMutability":"payable","type":"function"},{"constant":true,"inputs":[{"name":"","type":"address"},{"name":"","type":"address"}],"name":"allowance","outputs":[{"name":"","type":"uint256"}],"payable":false,"stateMutability":"view","type":"function"},{"payable":true,"stateMutability":"payable","type":"fallback"},{"anonymous":false,"inputs":[{"indexed":true,"name":"src","type":"address"},{"indexed":true,"name":"guy","type":"address"},{"indexed":false,"name":"wad","type":"uint256"}],"name":"Approval","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"name":"src","type":"address"},{"indexed":true,"name":"dst","type":"address"},{"indexed":false,"name":"wad","type":"uint256"}],"name":"Transfer","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"name":"dst","type":"address"},{"indexed":false,"name":"wad","type":"uint256"}],"name":"Deposit","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"name":"src","type":"address"},{"indexed":false,"name":"wad","type":"uint256"}],"name":"Withdrawal","type":"event"}]

We’ll first navigate to the Security tab of your Turnkey dashboard:

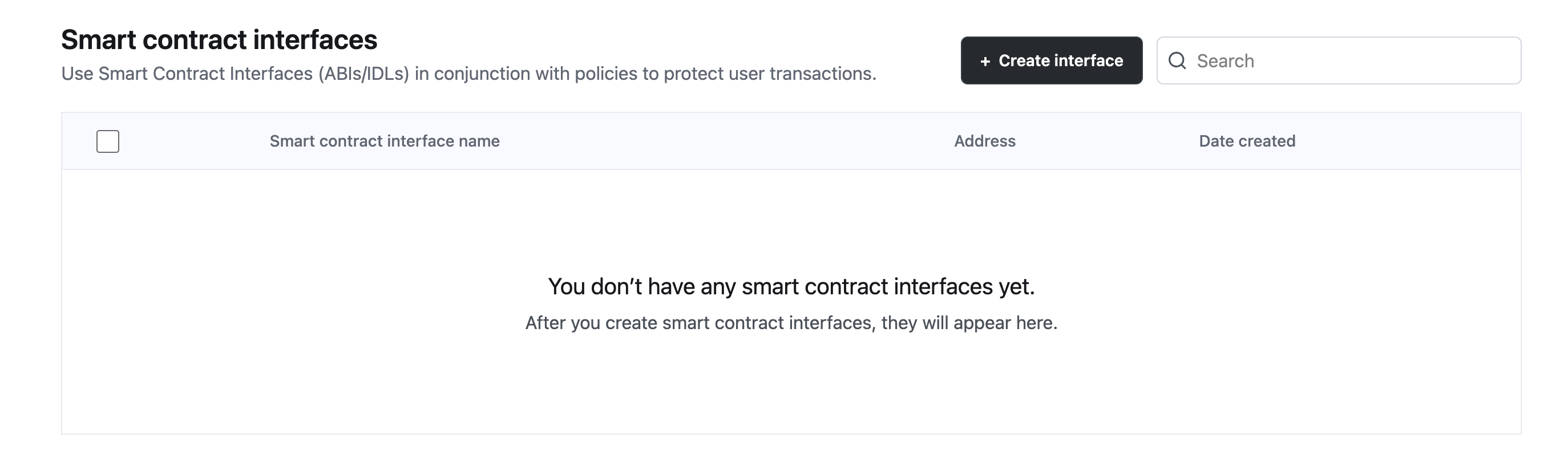

You’ll then see a section on Smart Contract Interfaces:

Upon clicking the Create interface button, you can enter in your Smart Contract Interface details:

Finally, you can confirm the details:

NOTE: It’s important to make sure that the Address section of the smart contract interface creation is populated with the correct Address. It is case insensitive with Ethereum, but case sensitive with Solana.

For the purposes of this guide, we’ll be targeting the transfer function call. It has two arguments: wad (uint256) and dst (address), corresponding to the amount and destination, respectively. We can now next construct a policy like the following:

{
  "effect": "EFFECT_ALLOW",
  "condition": "eth.tx.contract_call_args['wad'] < 1000000000000000000 && eth.tx.contract_call_args['dst'] == '0x08d2b0a37F869FF76BACB5Bab3278E26ab7067B7'"
}

In plain English, this policy requires that the transaction has a wad of less than 1 ETH, and that the dst is a specific address (our testnet warchest).

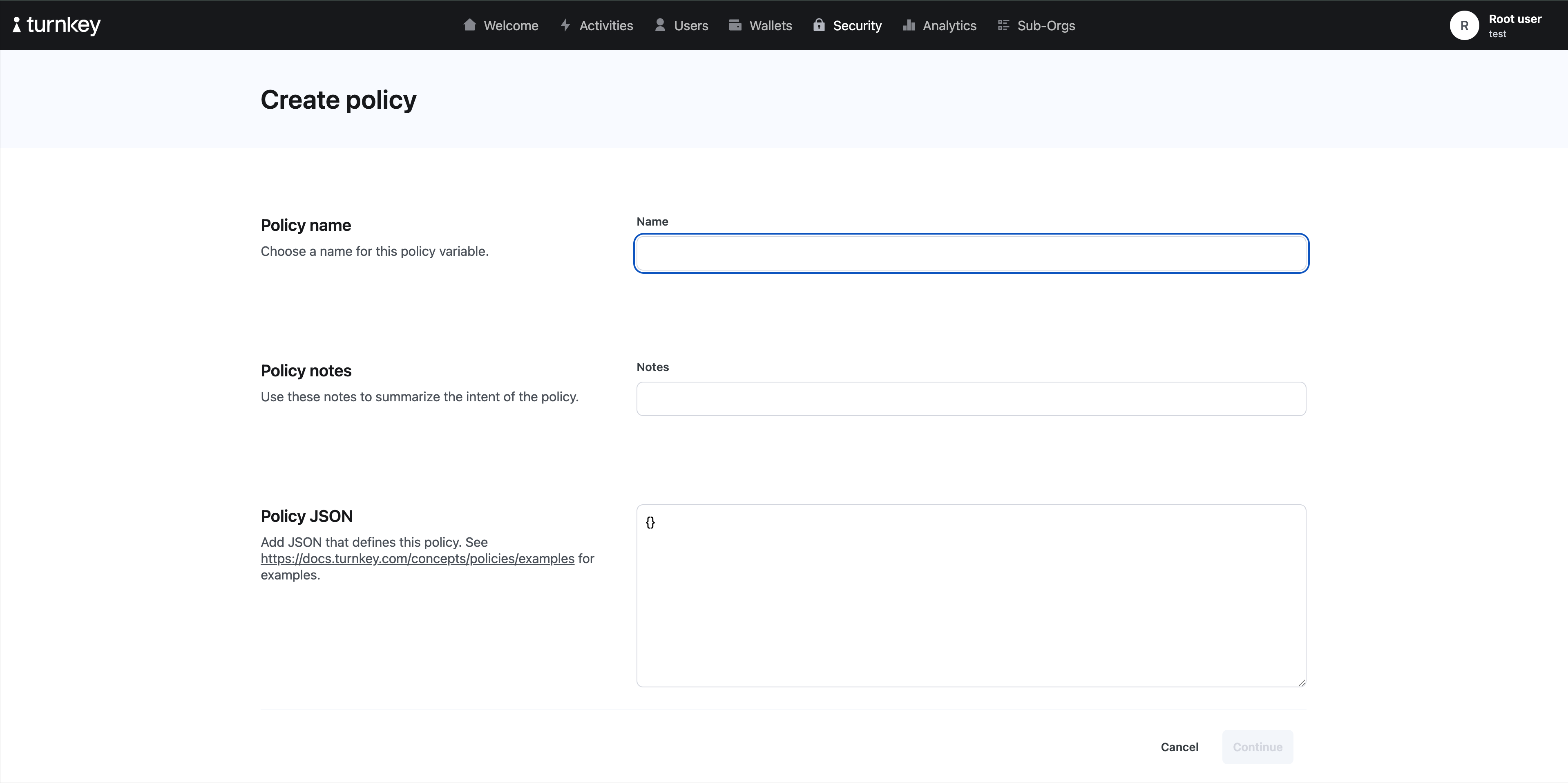

We can create this policy via the same Security tab:

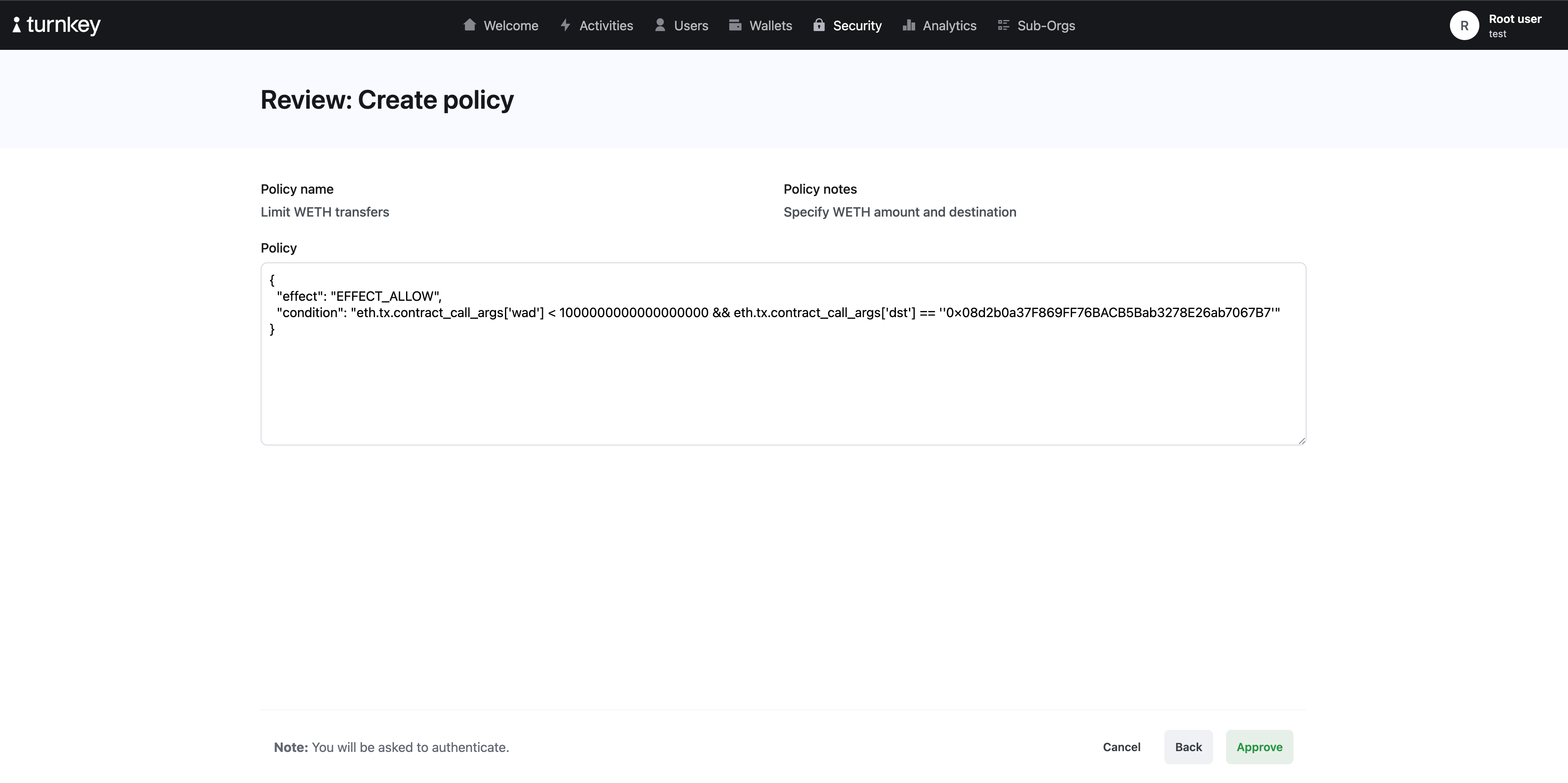

After entering the policy details, we can review and approve the activity:

In addition to contract call arguments, you can also explicitly specify the function name and function signature corresponding to a transaction. Given we’re currently using a transfer call, we can enforce it within a policy via the following:

{
  "effect": "EFFECT_ALLOW",
  "condition": "eth.tx.function_name == 'transfer' && eth.tx.function_signature == '0xa9059cbb'"
}

Note that the 0x prefix is necessary when writing a policy against function signatures. Generally, you can find function signatures on an explorer like Etherscan. In this case, the function signature for WETH’s transfer can be found here.

Note that these two operations, creating a new Smart Contract Interface and a Policy, can be performed programmatically as well. Here’s are two respective sample snippets that use our @turnkey/sdk-server package:

// Create Smart Contract Interface
import { Turnkey as TurnkeySDKServer } from "@turnkey/sdk-server";

...

const turnkeyClient = new TurnkeySDKServer({
    apiBaseUrl: "https://api.turnkey.com",
    apiPublicKey: process.env.API_PUBLIC_KEY!,
    apiPrivateKey: process.env.API_PRIVATE_KEY!,
    defaultOrganizationId: process.env.ORGANIZATION_ID!,
  });

const abi = []; // your ABI here

const { smartContractInterfaceId } = await turnkeyClient.apiClient().createSmartContractInterface({
    label: "WETH mainnet",
    notes: "For WETH mainnet transfers",
    type: "SMART_CONTRACT_INTERFACE_TYPE_ETHEREUM",
    smartContractAddress: "0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2",
    smartContractInterface: JSON.stringify(abi),
  });

// Create Policy
import { Turnkey as TurnkeySDKServer } from "@turnkey/sdk-server";

...

const turnkeyClient = new TurnkeySDKServer({
    apiBaseUrl: "https://api.turnkey.com",
    apiPublicKey: process.env.API_PUBLIC_KEY!,
    apiPrivateKey: process.env.API_PRIVATE_KEY!,
    defaultOrganizationId: process.env.ORGANIZATION_ID!,
  });

const { policyId } = await turnkeyClient.apiClient().createPolicy({
    policyName: "Limit WETH transfers",
    condition: "eth.tx.contract_call_args['wad'] < 1000000000000000000 && eth.tx.contract_call_args['dst'] == '0x08d2b0a37F869FF76BACB5Bab3278E26ab7067B7'",
    effect: "EFFECT_ALLOW",
    notes: "Specify WETH amount and destination",
  });

References

• Native to Anchor: Tool that creates Anchor IDLs for native solana programs
• Anchor Framework Github (Solana Foundation): Github reference for Anchor

FAQ:

• Q: Is there a size limit on ABIs or IDLs?
• A: Yes, we enforce a limit of 200kb. If your ABI/IDL exceeds that, we recommend minifying the JSON string (to get rid of whitespaces or extra characters). This can be done programmatically via a command similar to JSON.stringify(), or a webtool like https://codebeautify.org/jsonminifier .
